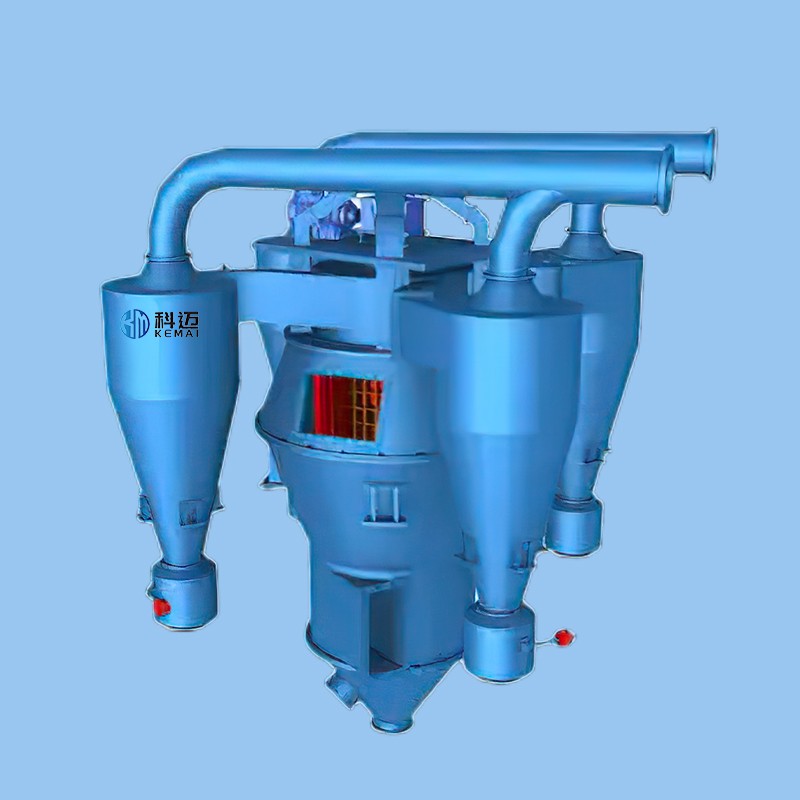

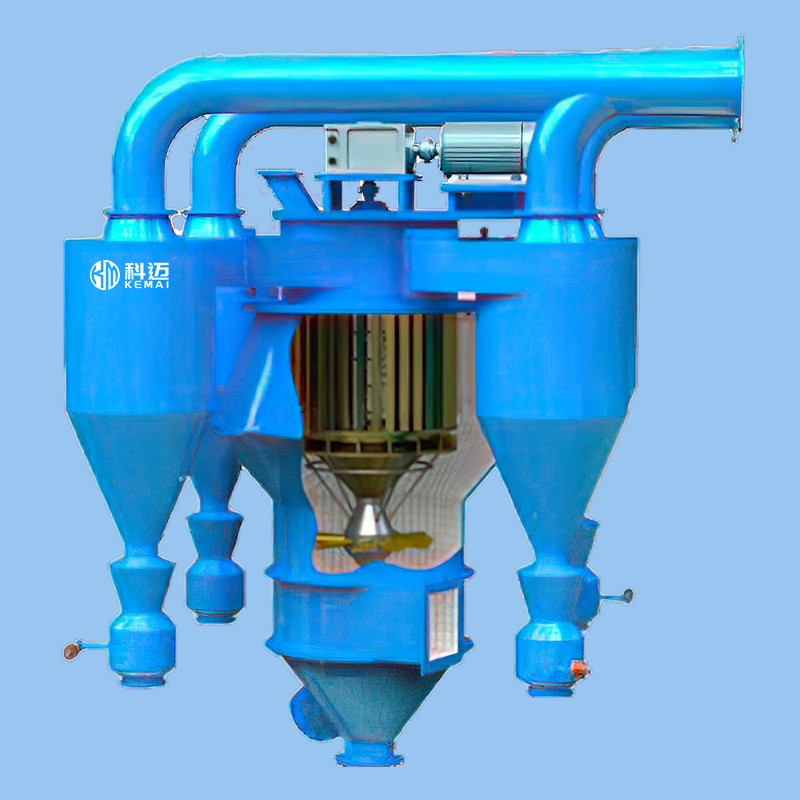

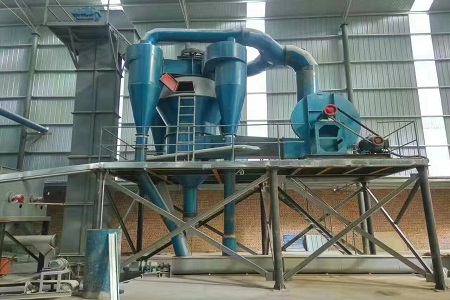

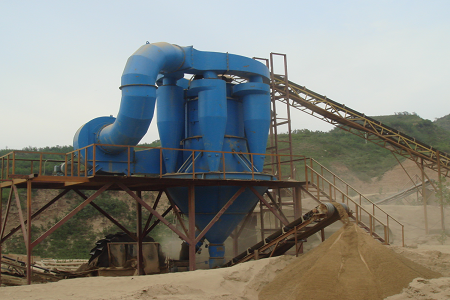

Brief introduction of KM series air classifier

KM series air classifier, designed by our experts after many years' effort, is an improved classifier. It is the new design on basis of the rotor classifier, integrates the Dimensional vortex Theory with the cyclone collector. It is proved that the efficiency of the classifying can reach to 85%. With the reliable operation, the fineness degree can be easily adjusted.

Main characteristic

1.The fineness can be adjusted, high powder separation efficiency, easy installation, and easy maintenance:

2. Suspended decentralized election pre-separation technology create good conditions for powder;

3.level classification precision eddy current technology improve the efficiency of the separator and increase the surface area with the finished product;

4.Combination closed-circuit loop, simplifying the process and reduce the investment and capacity;

5. Compact structure, high efficiency and energy saving, easy adjustment, a local multi-skilling.

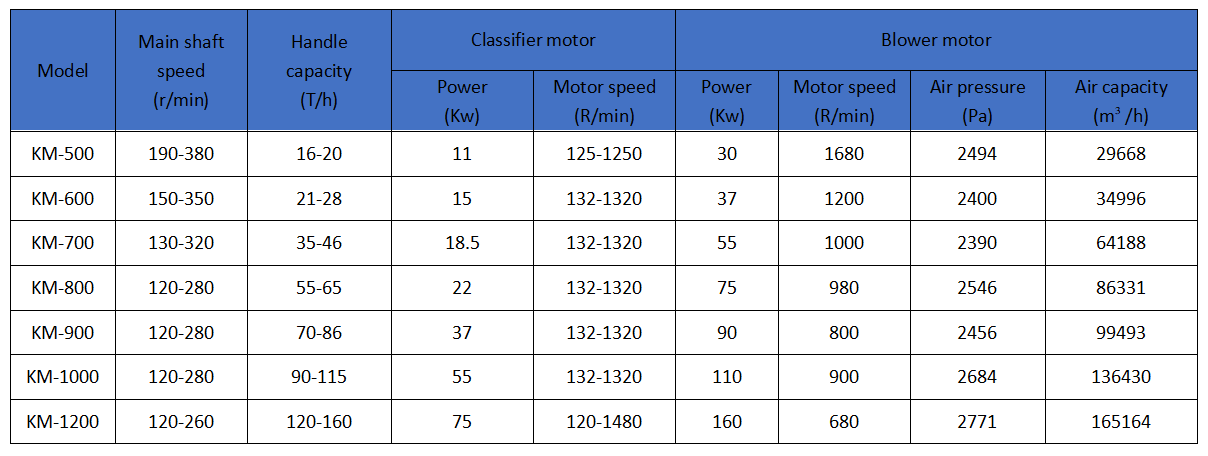

Technical parameters of KM series air classifier

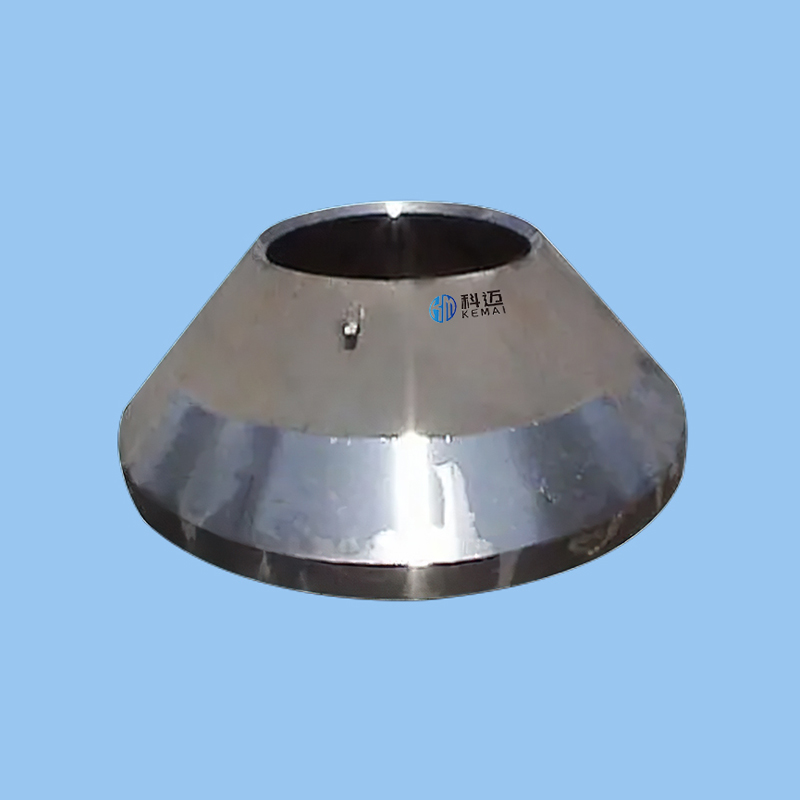

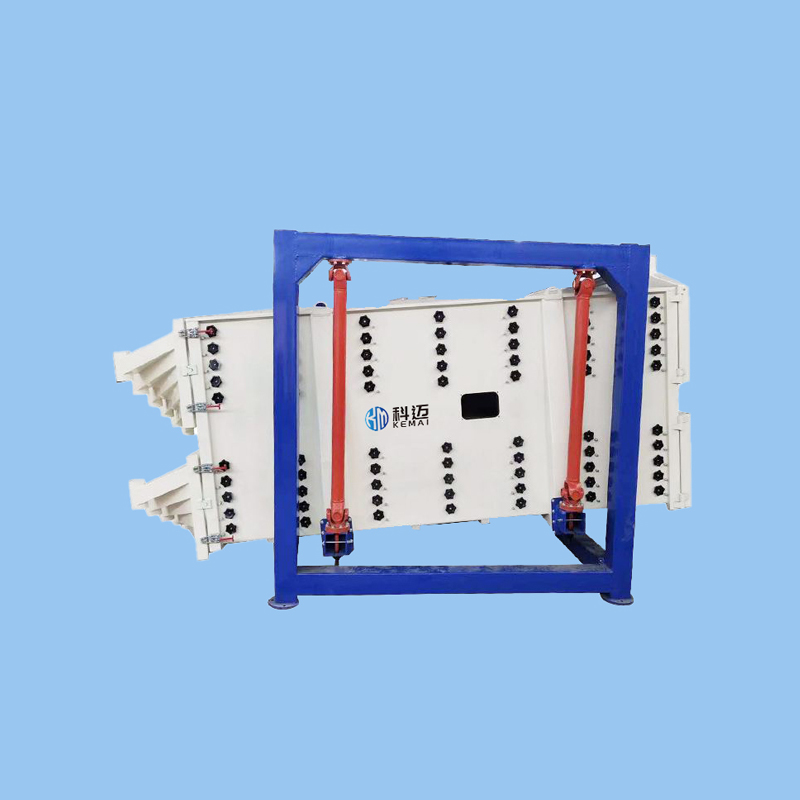

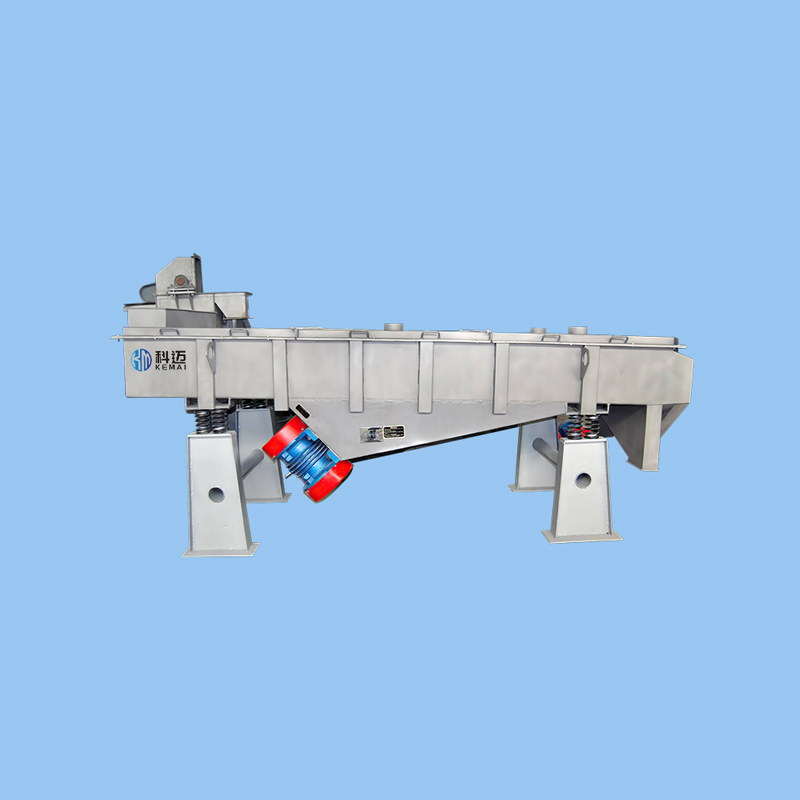

Some of our product
