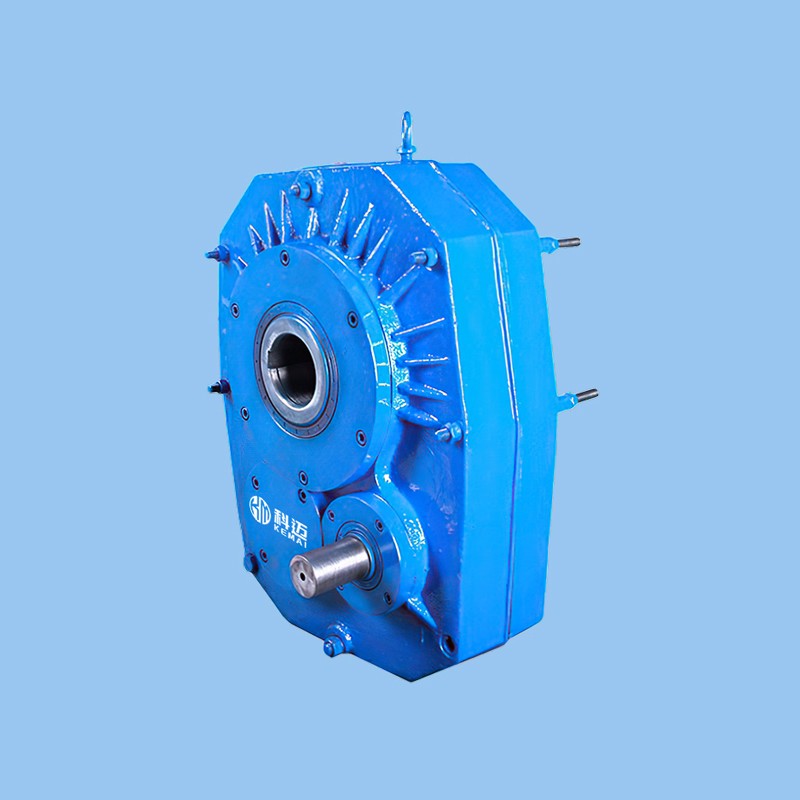

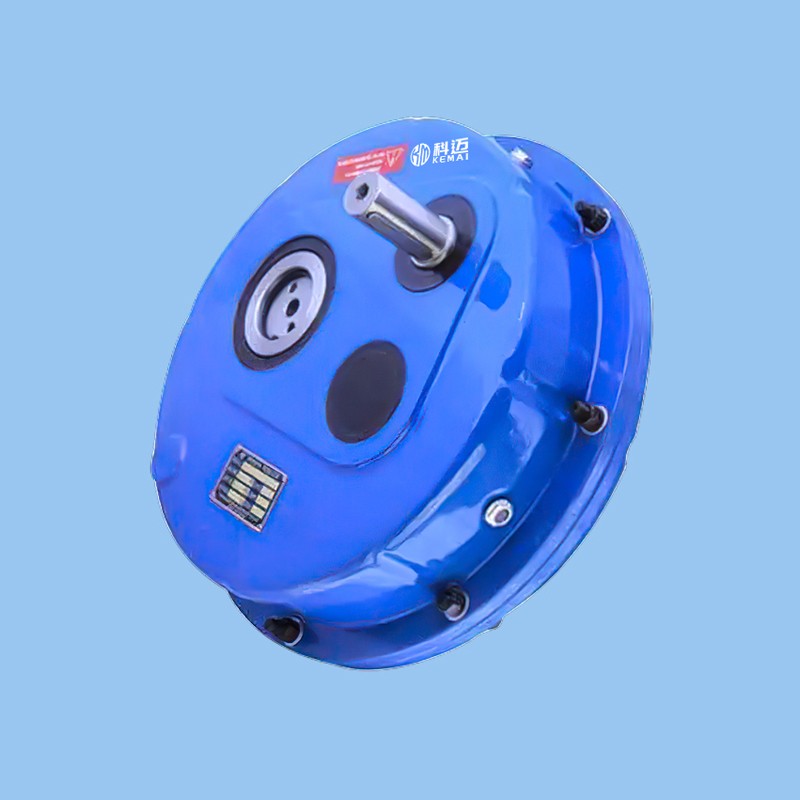

Brief introduction of Shaft mounted gearbox

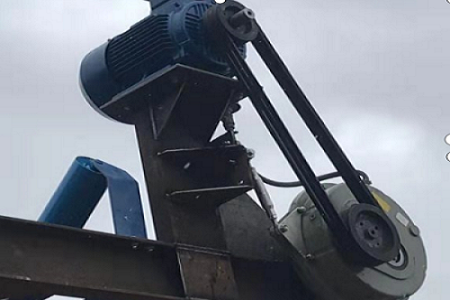

Shaft mounted gear box has long has long been established as a best seller for quarry and mine applications where absolute reliability and low maintenance are key factors. Another winning factor is the backstop option that prevents back driving in the case of inclined conveyors. This gearbox can be completed by selecting from a wide range of electric motors entirely

1.Housing material:HT250 high-strength cast iron

2.Housing hardness: HBS190-240

3.Gear material:20CrMnTi alloy steel

4.Surface hardness of gears:HRC58°~62 °

5.Gear core hardness:HRC33~40

6.Input / Output shaft material:42CrMo alloy steel

7.Input / Output shaft hardness:HRC25~30

8.Machining precision of gears:accurate grinding, 6~5 Grade

9.Lubricating oil:GB L-CKC220-460, Shell Omala220-460

10.Efficiency:98%

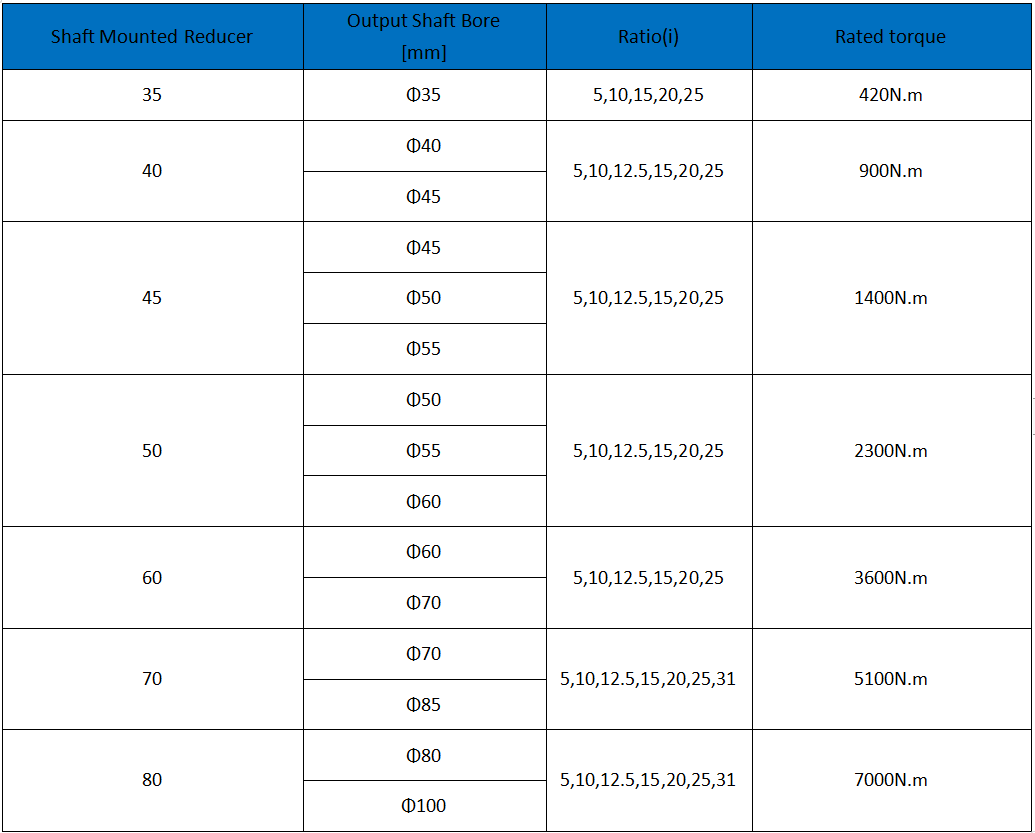

Specification and parameter

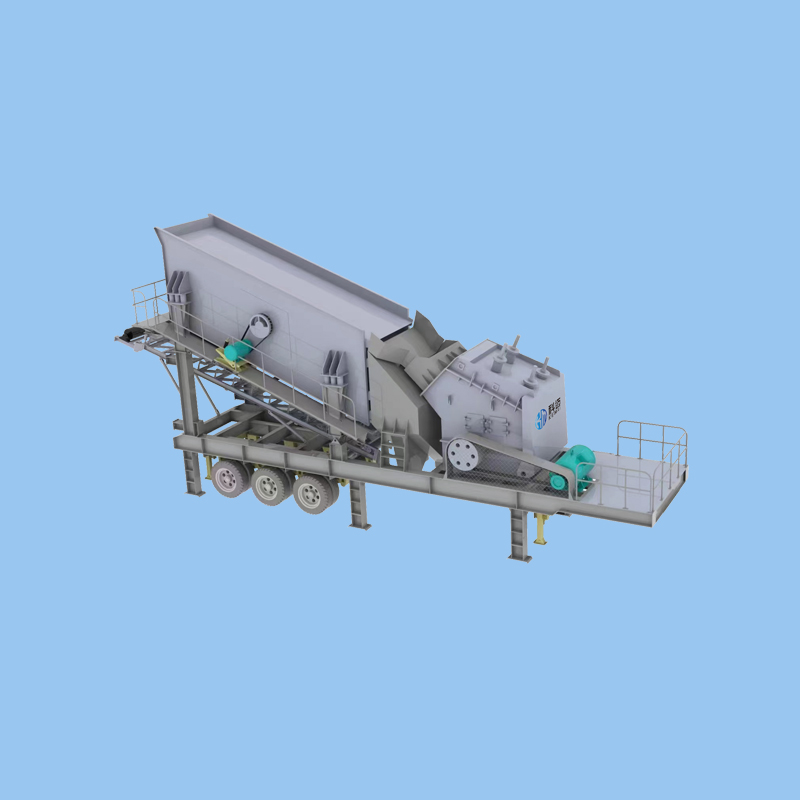

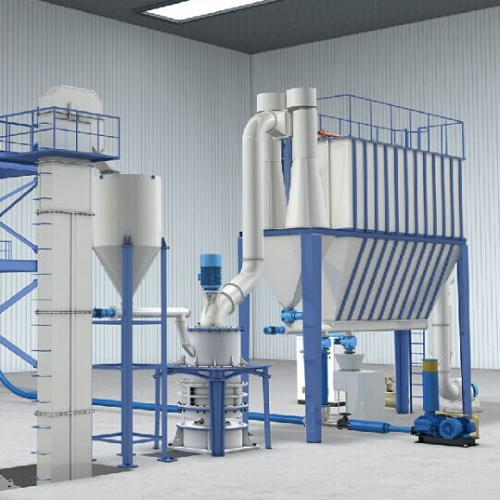

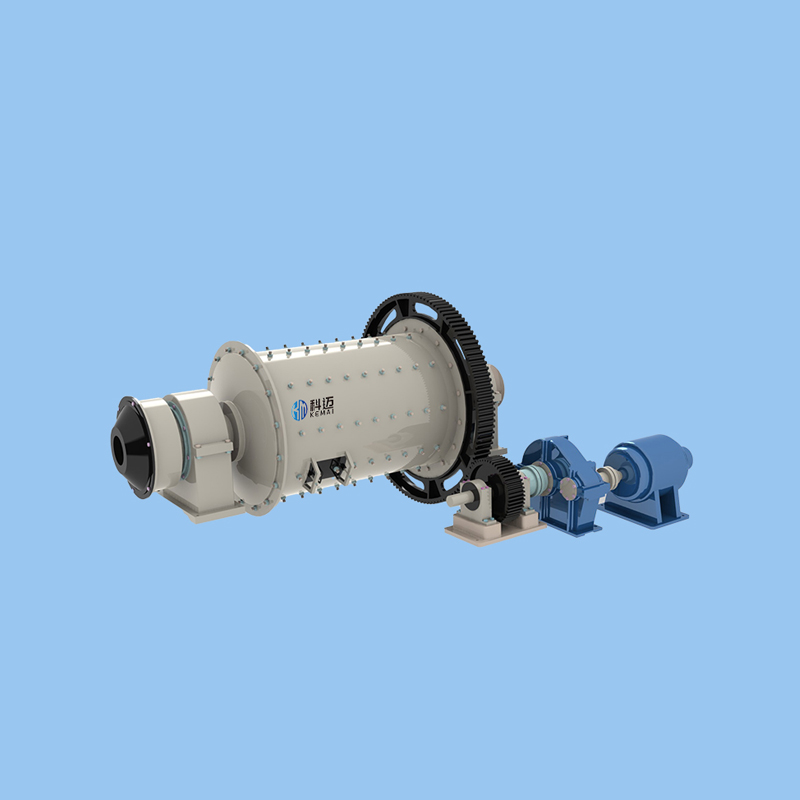

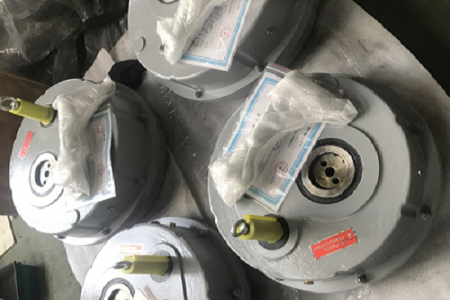

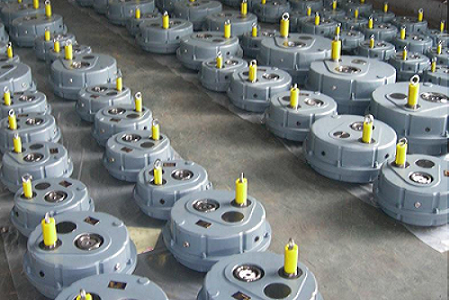

Some of our product
