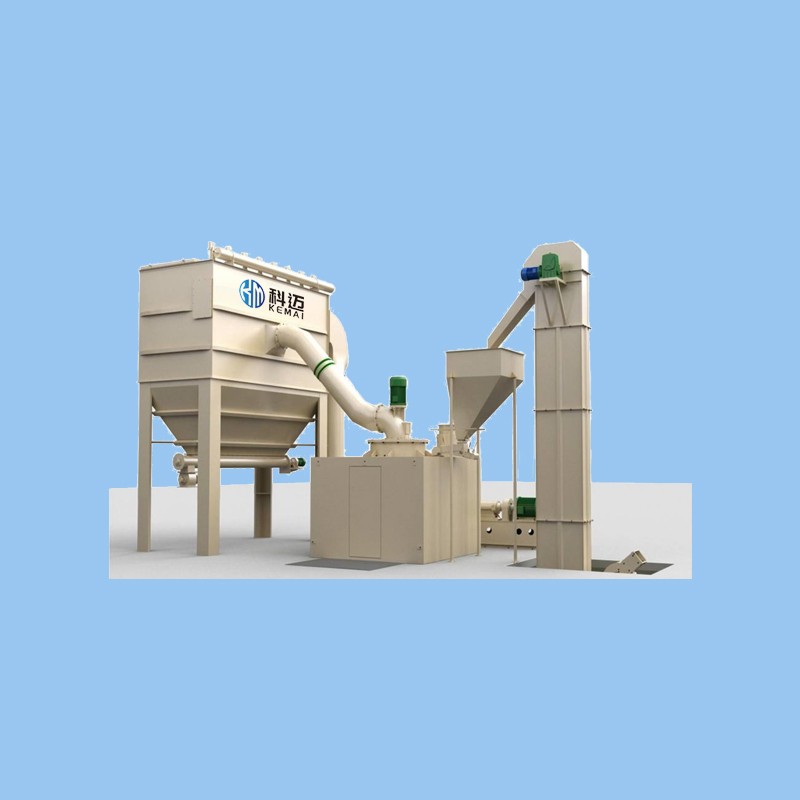

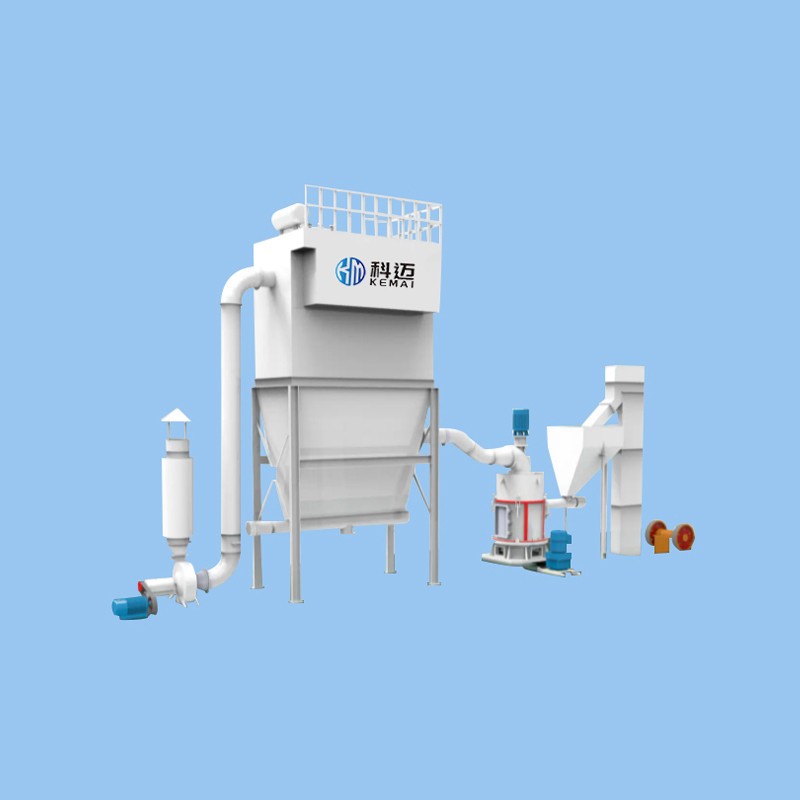

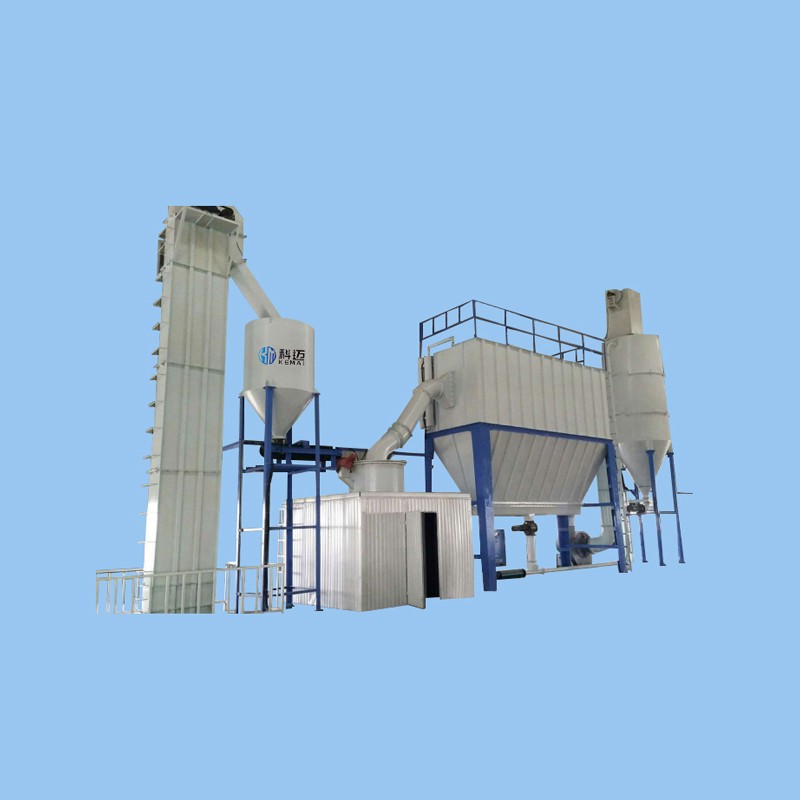

Brief introduction to Z series micro-powder grinder

Z series micro-powder grinder is designed based on the experience of producing milling plant for more than 20 years, combing the latest mechanical techniques of Sweden. It is the latest superfine power processing machinery in mining and construction industry. Z series micro-powder grinder is widely used in making fine powder or ultra-fine powder. The raw materials should be non-inflammable and non-explosive, with Moh's hardness below 7, such as limestone, dolomite and etc.

Working principle of Z series micro-powder grinder

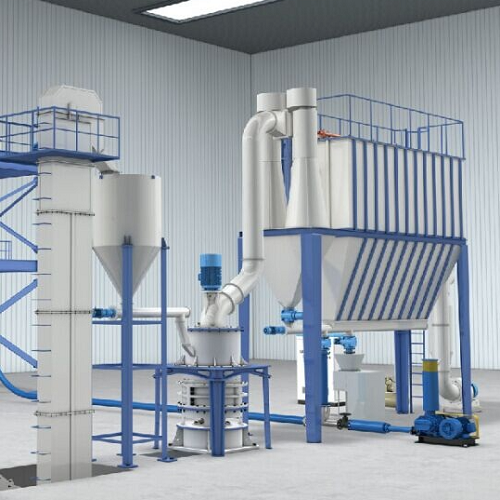

The material in the silo will fall down into the feeding tube evenly through the vibrating feeder, and then fall onto the upper scattering plate and then scatter on the gap between the roller and ring. The material into the inner wall of the rollers will be reground, and then fall down onto the lower scattering plate. The fine powder of required fineness will be discharged into the dispersive twin-pipe cyclone separator, and then be discharged. The coarse power will enter the grinding wall to be reground. The air current with the power will enter into the lower part of the pulse bag dust catcher, and then be discharged through the rotational discharging device after filtering.

Characteristics of Z series micro-powder grinder:

1.High efficiency and lower consumption

2.Non-bearings and non-bolt in the grinding chamber

3.The fineness of final products can be 5 μm

4.The advanced technology in domestic

5.Energy conservation

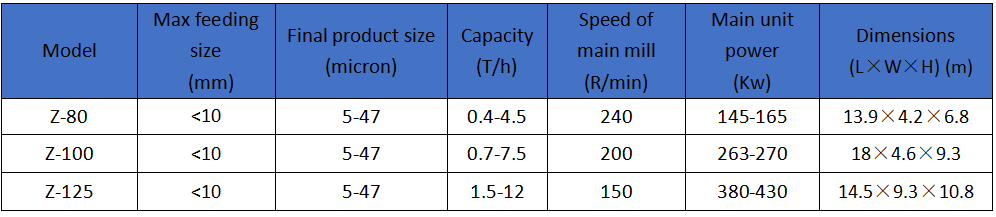

Technical parameters of Z series micro-powder grinder

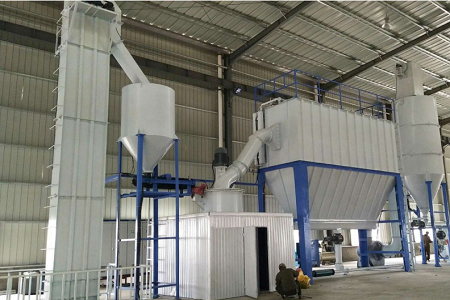

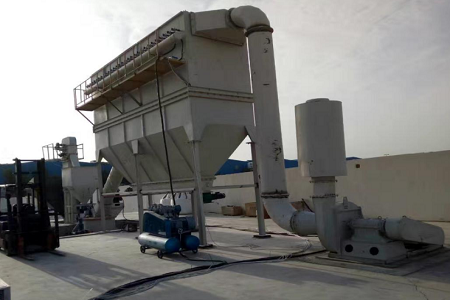

Some of our product
