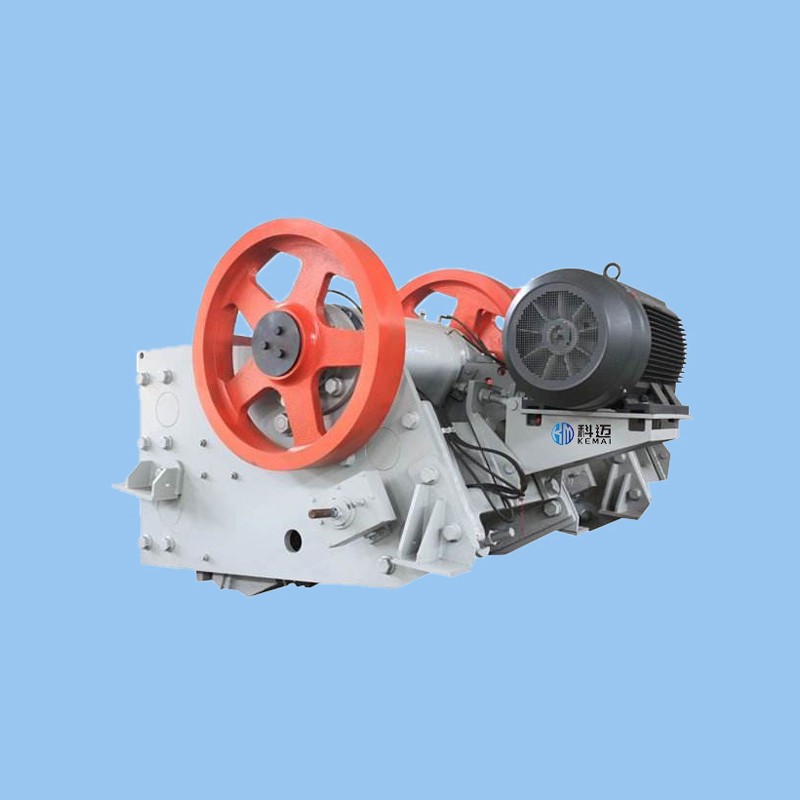

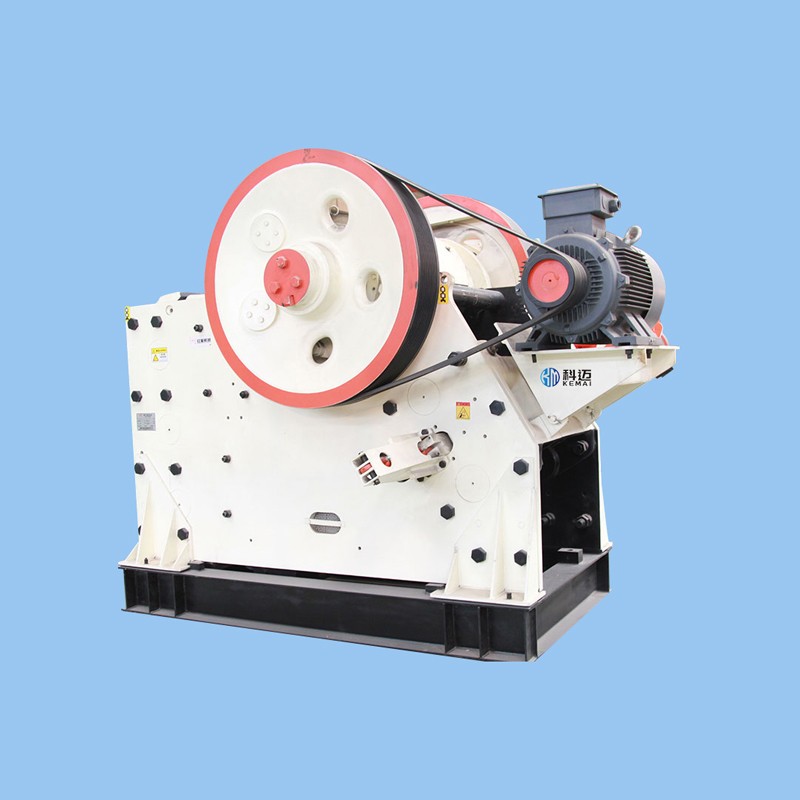

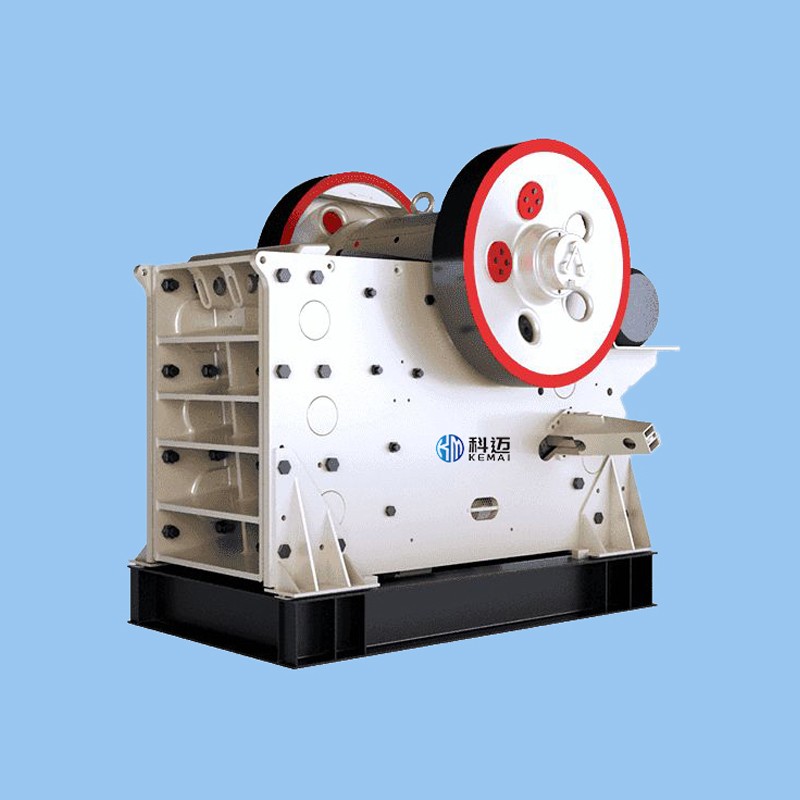

Brief introduction to C series jaw crusher

Compared with other crushers, C series Jaw crusher has the advantages of advanced structure, relative less weight, reliable performance, high capacity and high crushing ratio, , as well as easy to install and convenient to operate. The application of high speed crushing technology allows for the higher crushing ratio and higher capacity. Besides, the shock absorption system effectively protects the foundation from any damage.

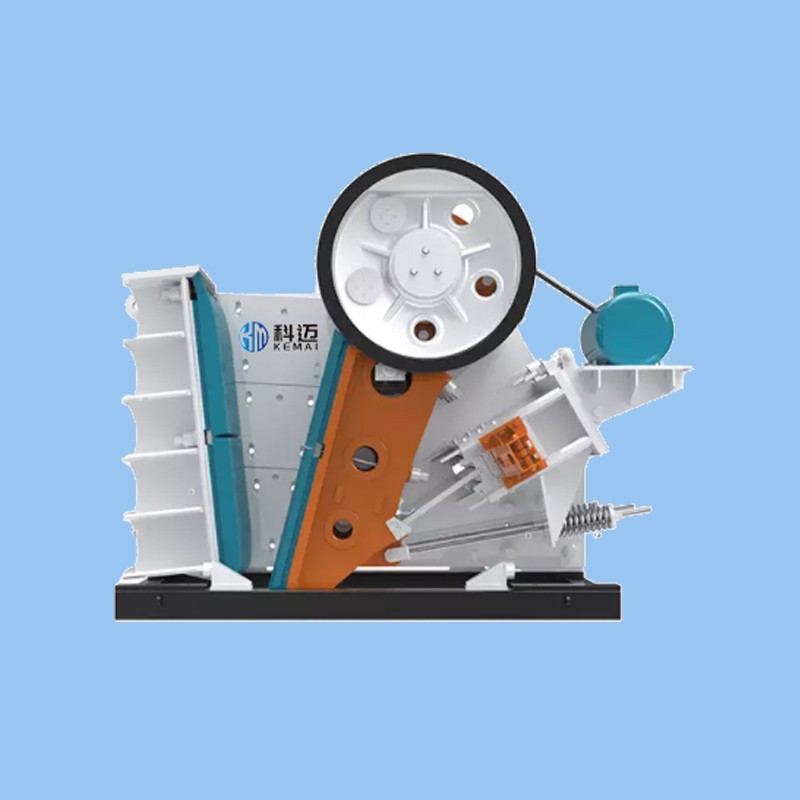

Characteristics of the frame construction series jaw crusher

1.Application of modular construction and no-welding designs remove stress concentration and improve the service life..

2.After long-term operation, the parts of Jaw crusher are easier to be checked and replaced than those of welding or casting structures.

3.The front plate, movable jaw plate, back plate, bearing base and other parts are made of high quality cast steel.

4.The adjusting system of jaw crusher adopts shim block structure, special gear system to simplify the adjustment of discharge opening.

5.The belt wheel of motor adopts probe-drogue connection to simplify the maintenance

6.Integrated motor and main frame structure save the space

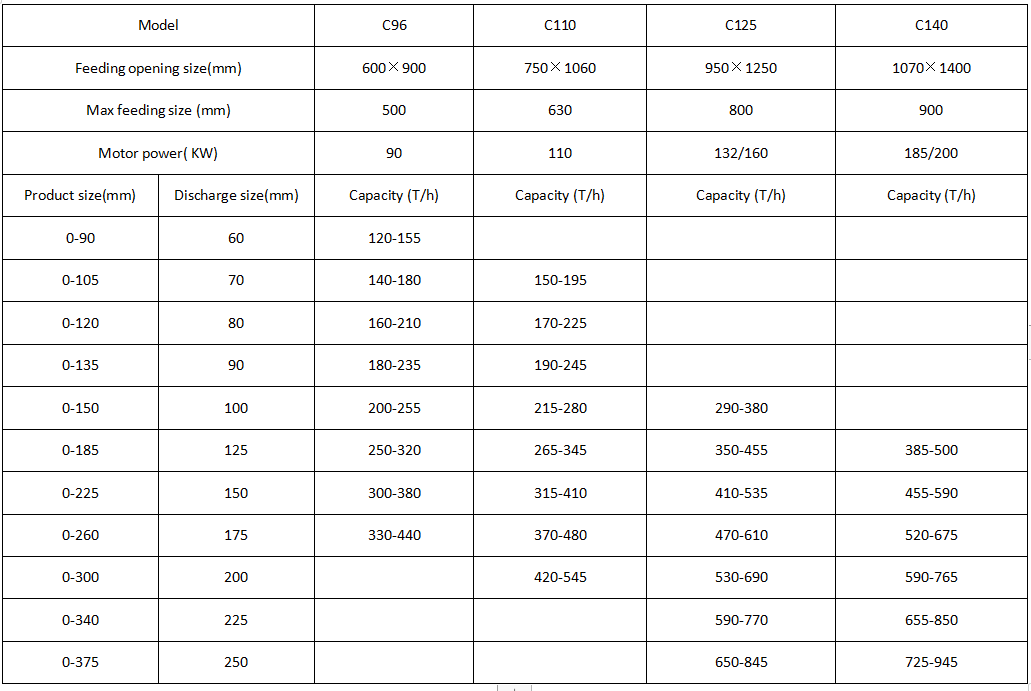

Technical parameters of frame construction series jaw crusher

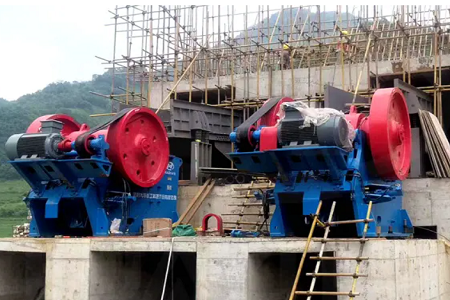

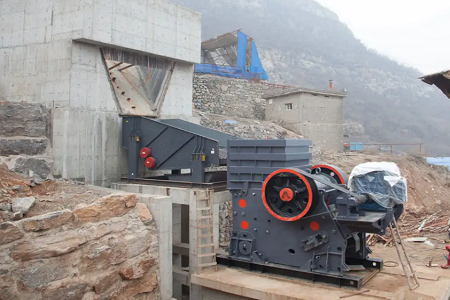

Some of our product
