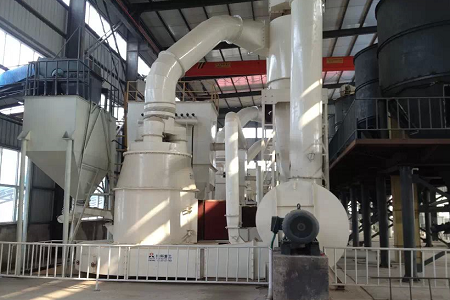

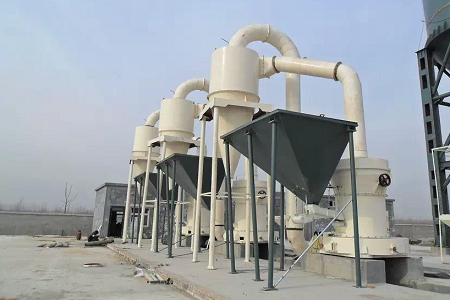

Brief introduction to Y series high pressure grinder

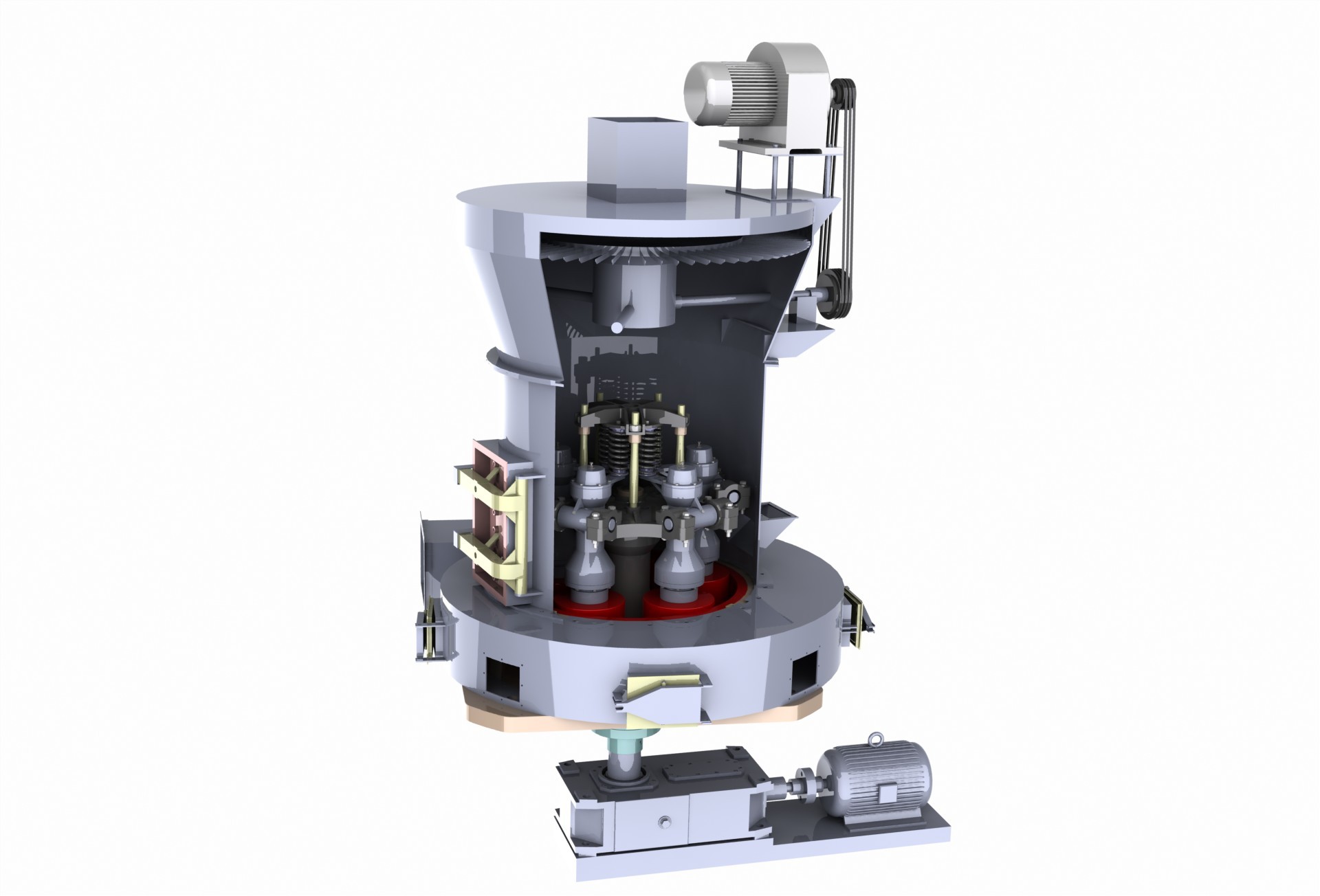

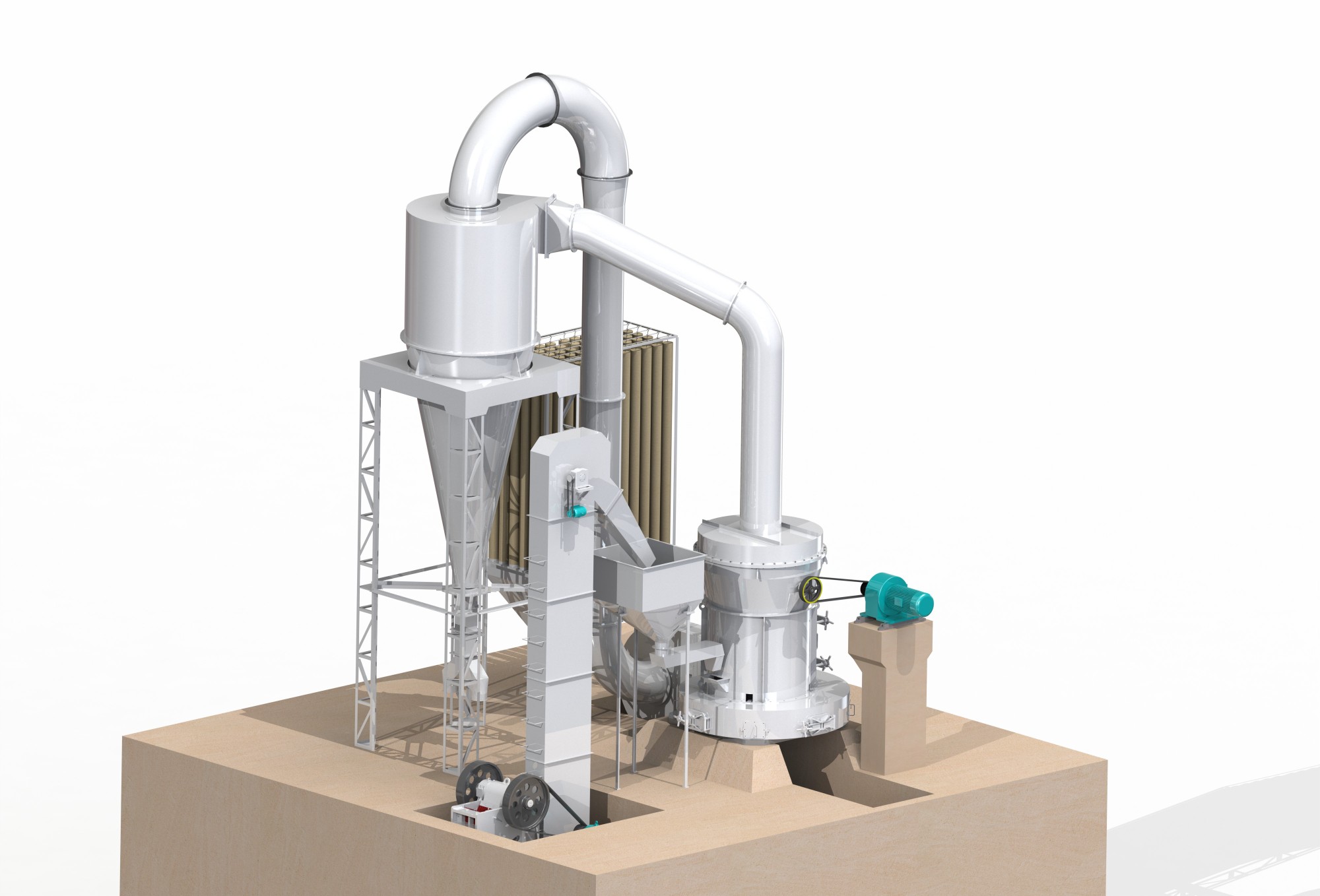

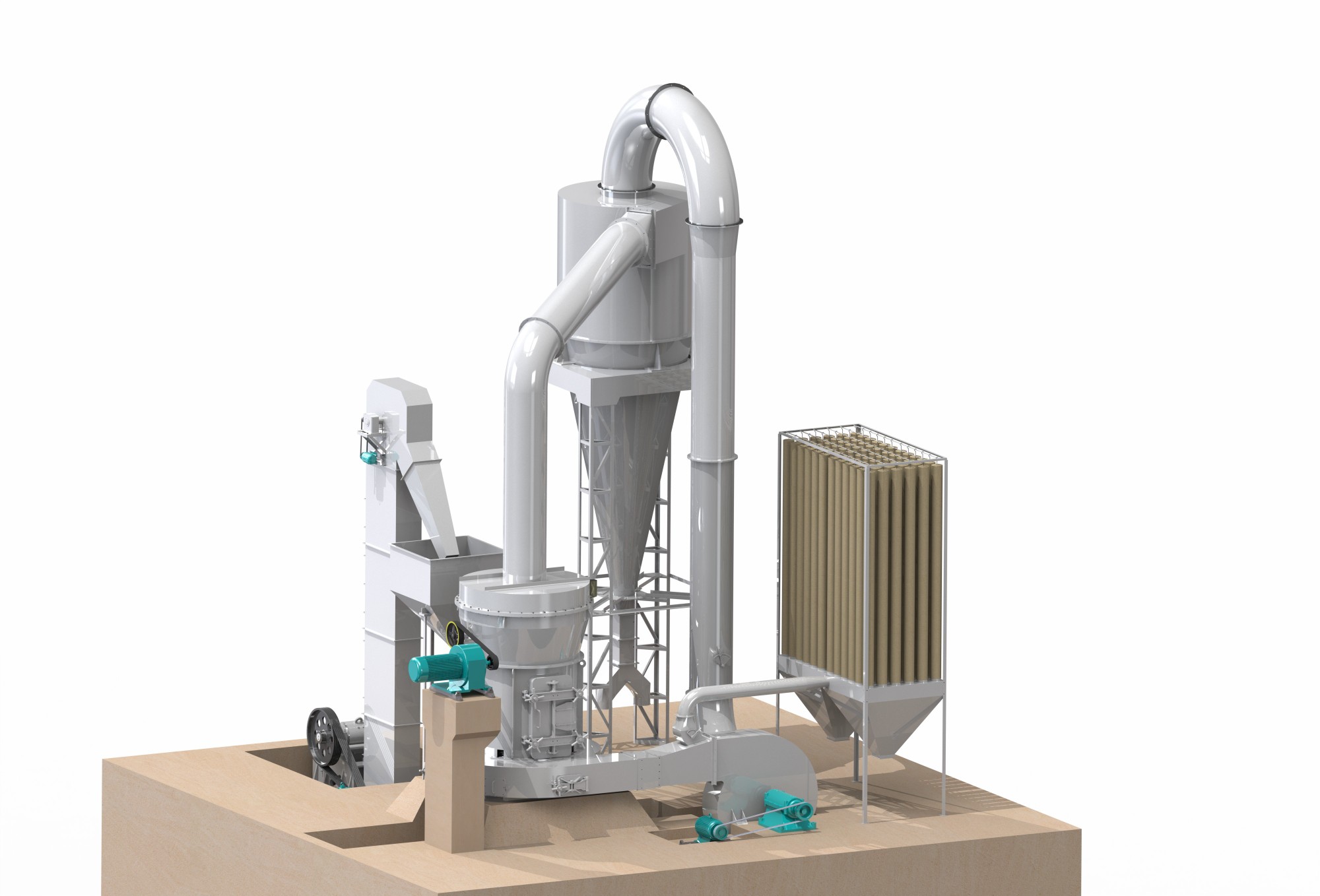

Y series high pressure grinder is new type grinding equipment which is the latest design of our R&D Department. This grinder is widely used in non-metal minerals industry, mainly for producing minerals powder with Moh’s hardness below 9.3, humidity 8% and non-flammable non-explosive minerals. Working principle of Y series high pressure grinder After reducing driving force of the main motor by the gear reducer, when the drive center axis and the quincunx rack fixed on the center axis revolve, under the centrifugal force the roller revolves around the center axis, at the same time parallel swing around the shaft, making the roller compress outside to the ring, thus ensure that the roller and ring has maximum surface contact. At the same time the roller self revolves around the roller shaft, making the material scooped up by the shovel blade to grind, after grinding the powder blew upper part of the mainframe, the separating by the separator, too coarse powder drops to the grinding room to re-grind, the qualified powder airflows into the cyclone powder collector, through the discharging pipe is qualified product.

Characteristics of Y series high pressure grinder

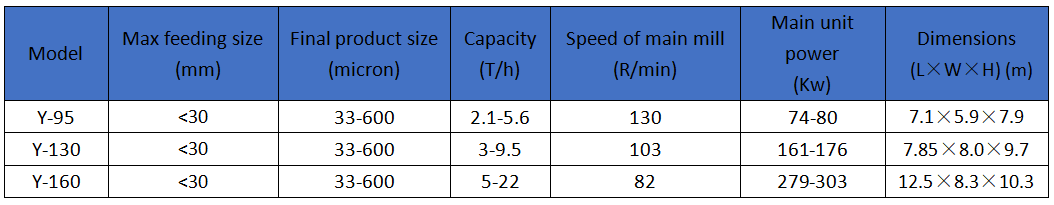

The classifier adopts blade analyzer adapted to get (0-400 mesh), can increase the fineness of the finished products, more efficiency Air conveying and final product collecting system all changes negative pressure, secondary high efficient powder catcher makes final product’s collecting more thoroughly. Advanced and reasonable structure; highly low equipment’s vibration; low noise; Technical parameters of Y series high pressure grinder
